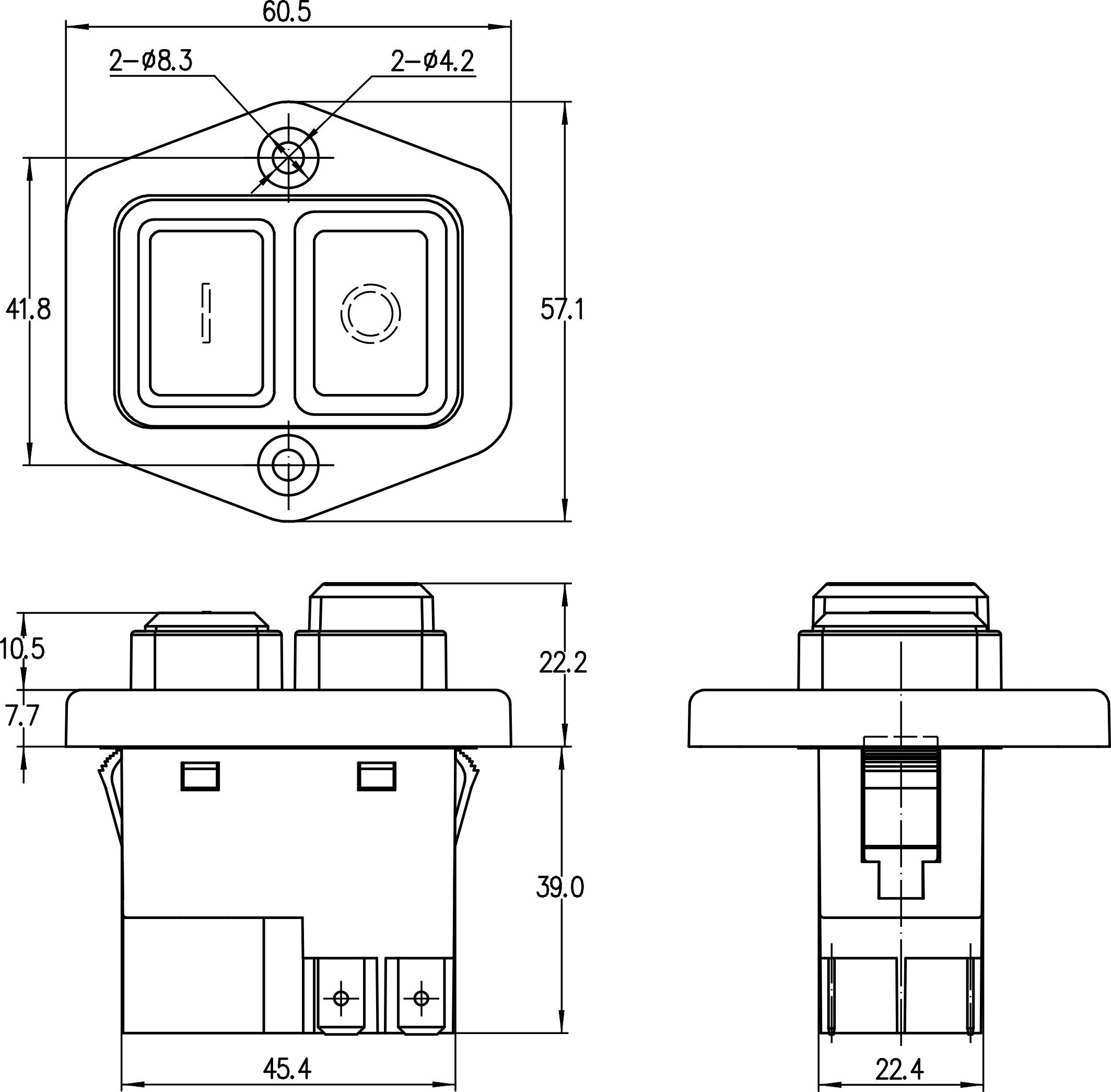

产品形貌Product description
◆JB03系列是一款标准型的电磁开关，装置防护罩后集成防尘防水功效，适合种种台式电动工具和园林工具，如：台式推拉锯、台式圆锯、台式刨床、台式铣床、台式车床、台式线锯、台式钻床、台式砂轮机和家用碎枝机等 。
◆JB03 series are one standard electromagnetism switches, integrated dustproof and waterproof when employ Protection Cap, for use in bench top power-tools and gardening tools such as: Bench Push-pull Saws, Bench Circular Saws, Bench Planers, Bench Routers, Bench Lathes, Bench Scroll Saws, Bench Drill Presses, Bench Grinders, Domestic Shredders, etc.
产品特征Features
◆可选带以下附件 Optional with the accessories as follows:
→儿童清静锁 Lock for children's safety
→线圈外接端子 Terminal of winding outside
→急停盖 Emergency stop cover
手艺数据Technical data
→机械耐久寿命 Mechanical life endurance1E5
→电气耐久寿命 Electrical life endurance5E4
→最大攻击电流 Max. Inrush current at 250V84A
→最大攻击电流 Max. Inrush current at 125V96A
→接触电阻 Contact resistance≤30m Ohm
→绝缘电阻 Insulation resistance≥7M Ohm
→基本介电强度 Dielectric strength of function1500V
→增强介电强度 Dielectric strength of reinforced3000V
→情形温度 Ambient temperature0°C~85°C
→操动件温度 Actuator temperature0°C~55°C
→阻燃品级 FlammabilityUL 94V-0
→防护品级 Protection typeIP55 Max.
→适用于II类防护用具 Suitable for appliances of protection class II
端子类型Terminals
◆输入端/输出端 Input side/Output side:
→插片端子 Plug-in terminals 6.3×0.8mm
◆线圈外接插片端子 Terminal of winding:
→插片端子 Plug-in terminals 2.8×0.8mm
电气参数和认证 Electric Rating and Certification
